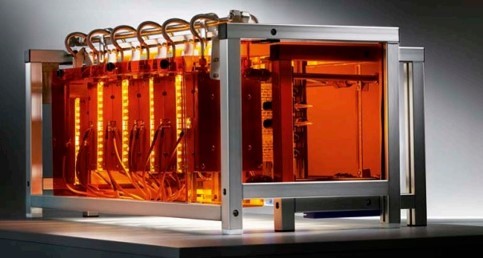

G1 Photo Reactor
Process development and small production Photo Reactor
G1 Photo Reactor
- Flow Rate : 10 to 200 ml/min
- Temperature : -60℃ to 200℃
- Pressure : Up to 18 barg
- Materials : Glass PFA Perfluoroelastomer

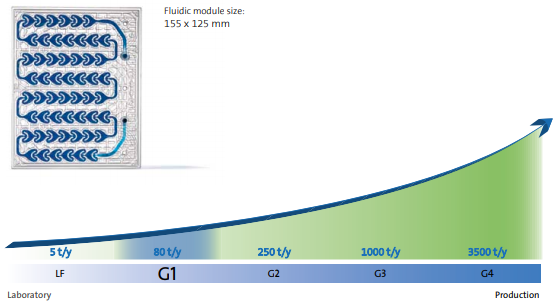

- Fludic Module : 9ml internal volume
- Options : FDA, cGMP, compliance
Features

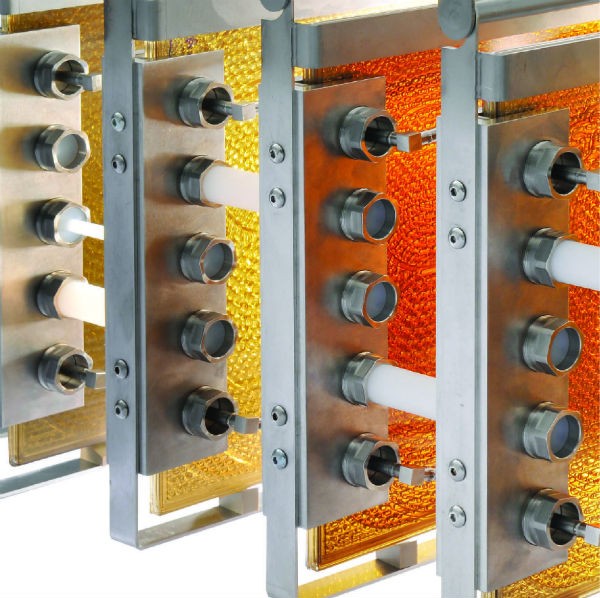

- Integration of a G1 glass reactor with a multiple wavelength LED lighting module
- Outstanding mixing and heat exchange : patented HEART design
- Small internal volume
- High residence time
- Highly flexible and multipurpose
- High chemical durability
- Benefits from the existing G1 Reactor
(Good mixing, good temperature, management, etc)
- Good control of the light source:
- Position of the LED guarantees homogenous illumination
- LED temperature control guarantees long lifetime
- Double illumination guarantees a more efficient use of the light
- Choice of wavelength
- 365mm, 405nm, etc.
- Lignt intensity is tunable

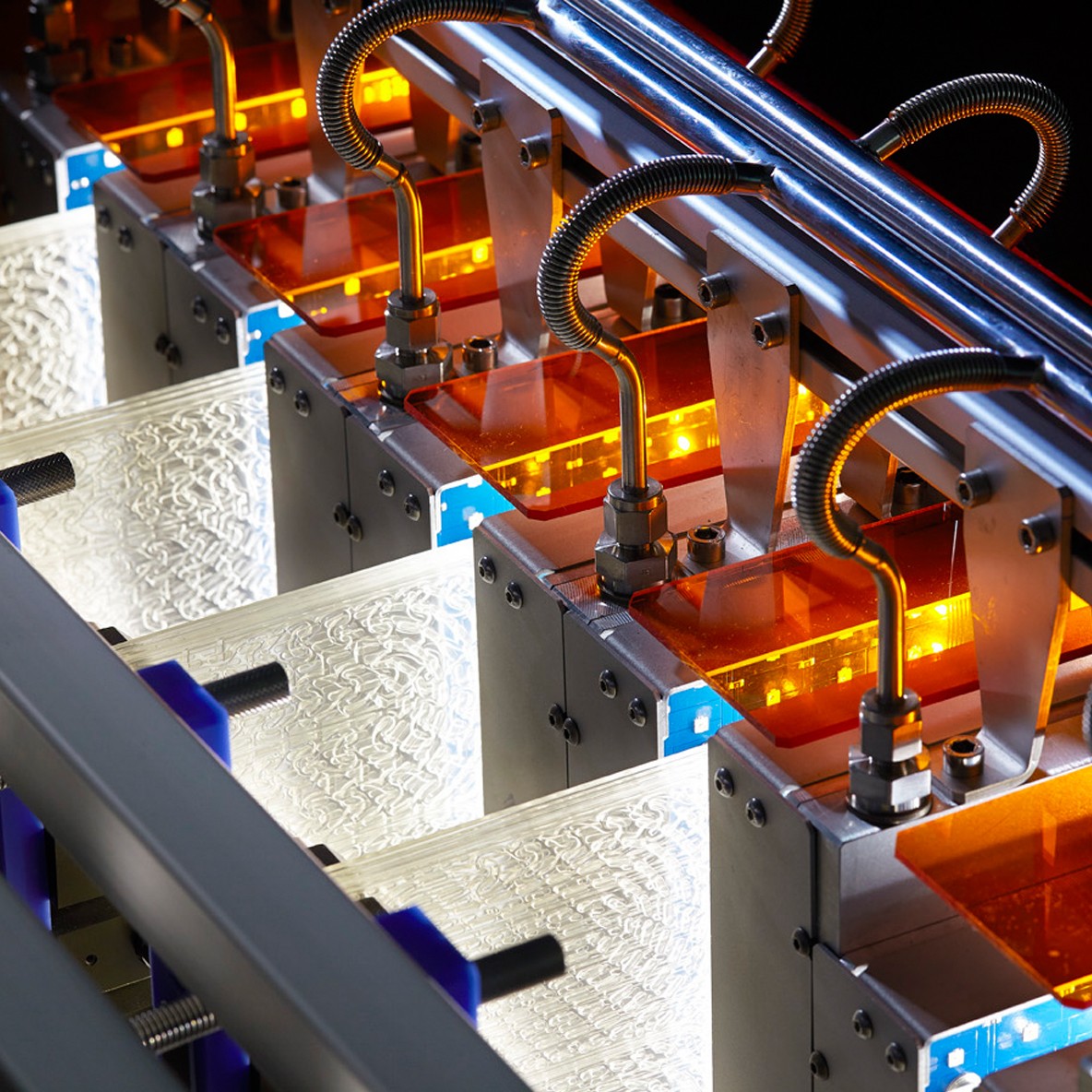

Lighting module features
- Tunable UV LED irradiation source available in multiple wavelength arrays
- LED lighting intensity higher than 100mW/cm2
- Efficient light penetration with both sides of glass fluidic modules illuminated
- Safe operation with low temperature UV lighting technology
- Extended LED lifetime due to efficient liquid cooling
