Mixing vessel
Mixing vessel
- Jacketed glass reactor : 30, 50, 100 liter

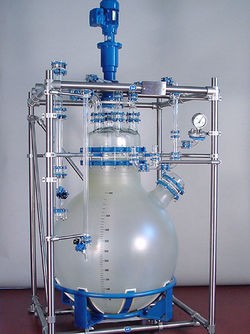

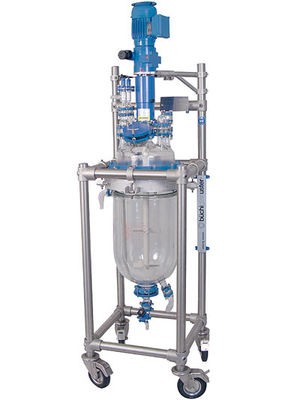

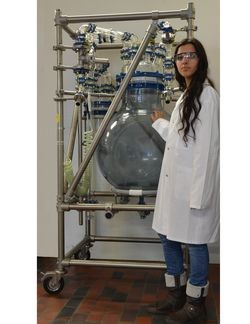

- Mixing vessel : 30, 50, 100, 200 liter
- Glass tanks : 30 - 400 liters
- Pressure : -1.0 (FV) to +0.5 bar
- Temperature : -60 °C (-90°C) to +150 °C (200 °C)
- Material : Borosilicate glass 3.3, PTFE, PFA, ETFE
Standard package
- Full glass vessel with bottom valve
- Glass dome with ports for inlet, solid feed, vacuum, etc.
- ETFE coated stirrer, dry-running mechanical seal
- ATEX stirrer drive, adjustable speed
- Mobile stainless-steel frame
- ATEX / CE / cGMP
- Complete documentation
Standard options
- Stirrers in different shapes /e.g. multi-stage, etc.)
- Flush mounted drain valve (zero dead volume)
- Full glass reactor with heating / cooling jacket
- CIP capability
- Glass reflux condenser
- Camlock fittings for flexible hose connection
- IQ / OQ / PQ
Chemical reactions, applications
- Work-up
- Conditioning
- Dissolving
- Extraction
- Mixing, stirring
- Phase separation
Examples

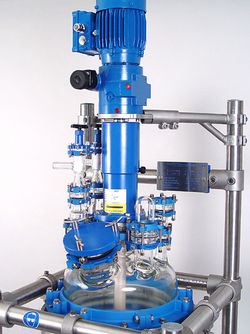

ATEX stirrer motor with dry-running seal

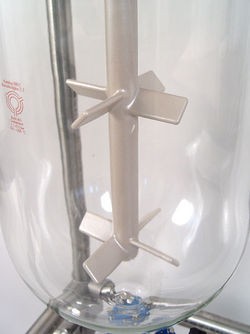

2 stage propeller stirrer, PFA coated

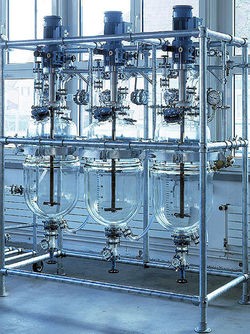

Jacketed glass reactors 3x50 liter for API production

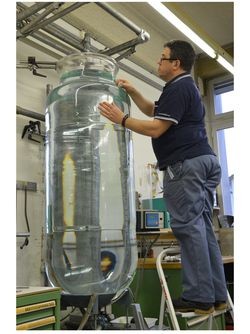

cylindrical glass vessel with ECTFE protective coating
cylindrical glass vessel with ECTFE protective coating
cylindrical glass vessel with ECTFE protective coating
