Production scale reactor systems
Production scale reactor systems
- Glass lined steel reactor : 250 - 10'000 liter
- Pressure : -1.0 (FV) to +0.5 bar
- Temperature : -60°C (-90°C) to +200°C
- Material : Borosilicate glass 3.3 / glass lined steel / PTFE / PFA / Tantalum
Glass lined steel reactors (G/L)
- AE / BE type reactors up to 10'000 liters
- Different setups are available
Glass lined steel feeders / receivers
- For larger volumes
Distillation glass overhead
- Unique flexible ball-socket joints
- Buchiflex DN15 - DN600 components
- Feed vessel for addition of liquids in glass / glass lined steel
- Glass distillation column
- Rectification columns with reflux divider
- Packed glass columns
- Column packing such as raschig rings, ceramic saddle packing, structured packing with different separation efficiency in different materials
- Shell & tube type heat exchanger (glass / SiC) / Spiral (reflux) condenser batteries
- Receiver vessel for collection of distillate / condensate in glass / glass lined steel
- Dean stark phase separator for azeotrope distillation
- Vacuum / pressure equalization and distribution (for semi batch operation)
- Self-draining «buchiflex» glass piping
Examples

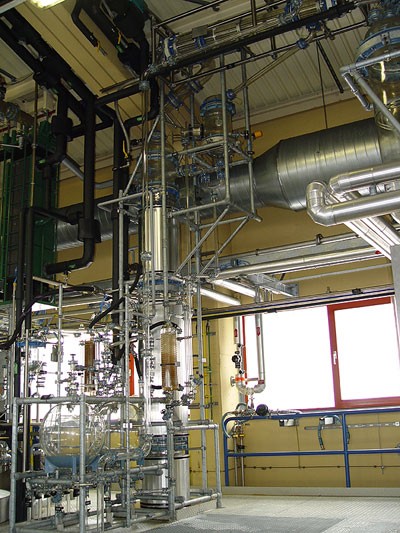

630 liter mixing tank with glass distillation overhead

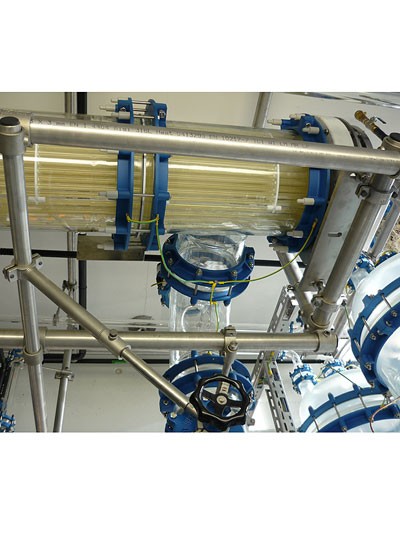

DN400 glass shell & tube type heat exchanger

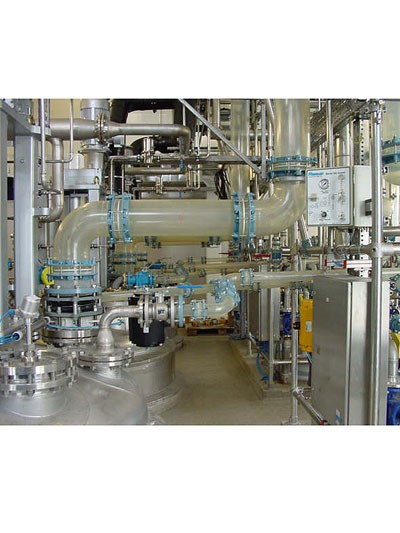

DN300 vapor duct with protective glass coating

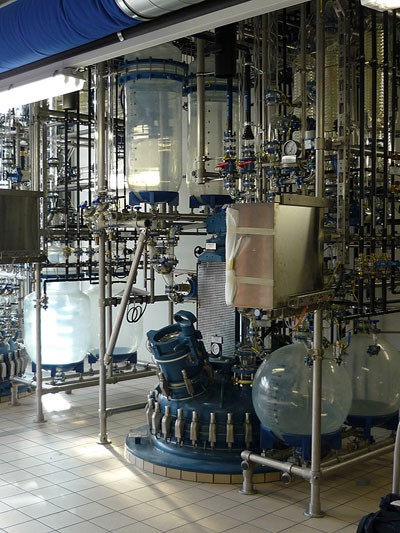

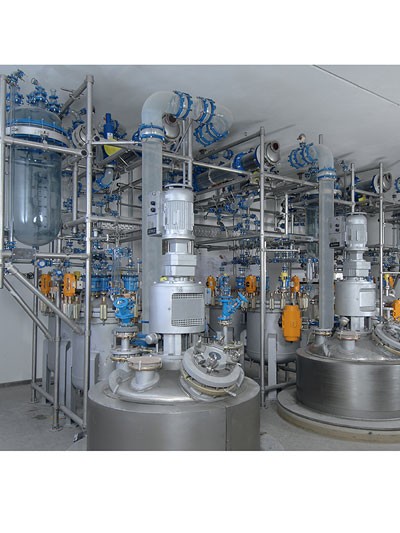

cGMP facility with 800 liter tanks for API production

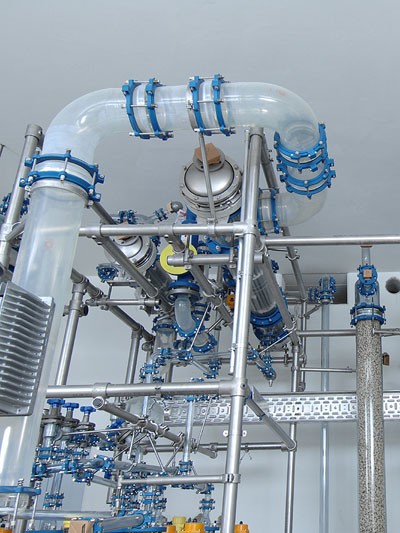

Overhead with SiC shell & tube type heat exchangers
1000 liter cryogenic reactor with glass overhead

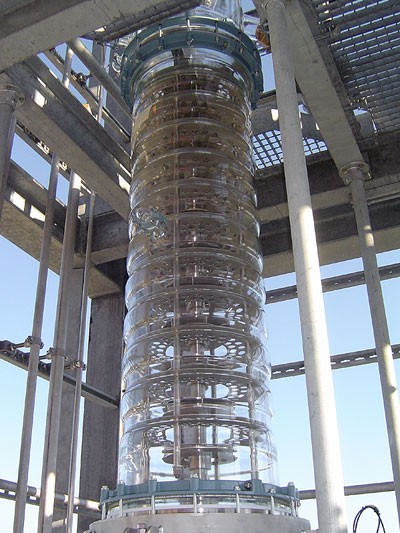

DN400 rectification column
DN400 liquid/liquid extraction column
