ChemReactor BR
ChemReactor BR
- Glass reactor : 15, 30, 60 literPTFE / PFA / Tantalum
- Pressure : -1.0 (FV) to +0.5 bar
- Temperature : -60 °C (-90°C) to +200 °C
- Material : Borosilicate glass 3.3 / glass lined steel / PTFE / PFA / Tantalum

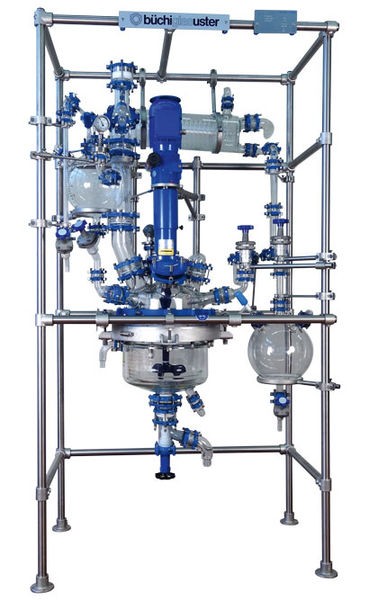

Standard package

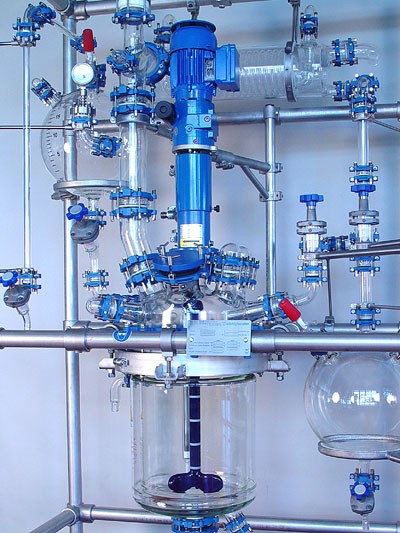

- Jacketed full glass reactor
- Multipurpose glass distillation overhead
- Stainless steel frame, supporting flexible glass superstructure
- ATEX Zone 1 (0) / CE / cGMP
- CIP capable
- FDA conform, highly corrosion resistant
- Complete documentation
Standard options
- chemReactor CR type Distillation glass overhead
- Reactor lift for easy opening (vessel cleaning)
- Triple wall reactor vessel
- Sampling device
- pH monitoring and control
- Gas introduction (Nitrogen purging and active gas)
- Vacuum / exhaust piping
- Additional feeders / receivers
- Solid feeding
- IQ / OQ / PQ

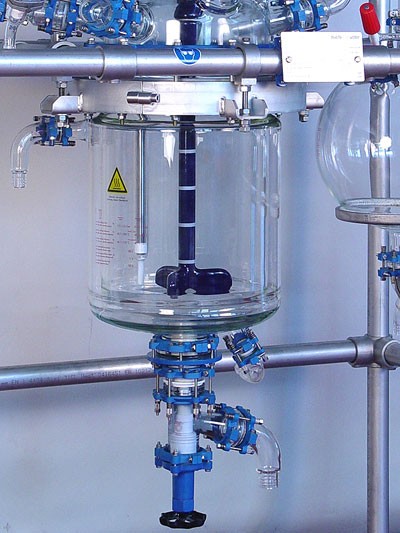

Reactor vessel
- Jacketed glass reactor 15, 30, 60 liter
- Baffle with Pt100 temperature sensor
- Flush mounted drain valve (zero dead volume)

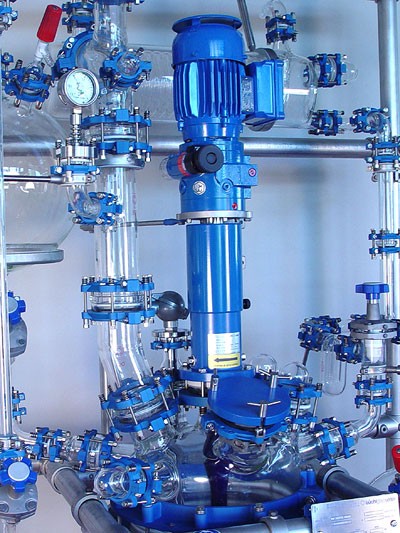

ATEX stirrer drive
- ATEX motor and adjustable transmission
- ATEX dry running mechanical seal
- Glass lined impeller stirrer

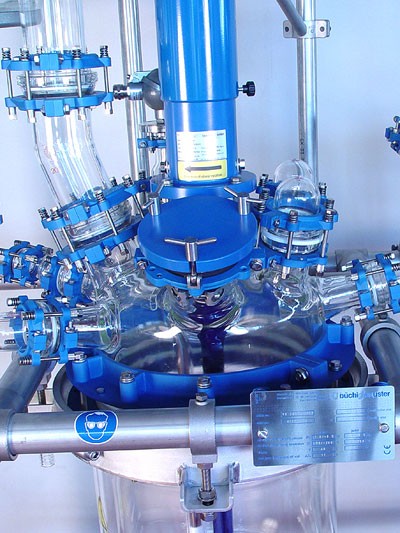

Glass dome / Glass lined cover plate
- Glass cover dome (15, 30 liter)
- Glass lined steel cover (60liter)
- Fast-action closure for addition of solids
- 8 connection nozzles
Distillation glass overhead
- Feed vessel for liquid addition
- Distillation column / vapor duct with pressure gauge and bursting disc
- Spiral condenser with vacuum / exhaust connection
- Receiver vessel for collection of distillate
- Self-draining «buchiflex» glass piping
- for GR type glass-overhead: see chemReactor CR
Typical applications
- Vacuum distillation
- Azeotropic distillation (phase separation)
- Evaporation to any desired consistency
- Multi-component chemical reactions
- Gas introduction into liquid phase
- Chemical synthesis
- Extraction of multi phase mixture
- Crystallization
- Refluxing
- Multiple chemical reactions liquid/liquid, liquid/solid
- Low temperature chemistry
