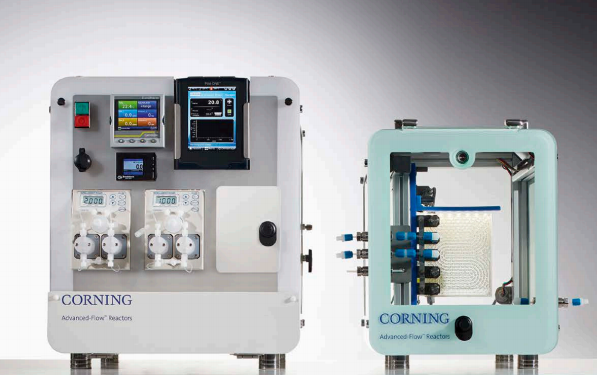

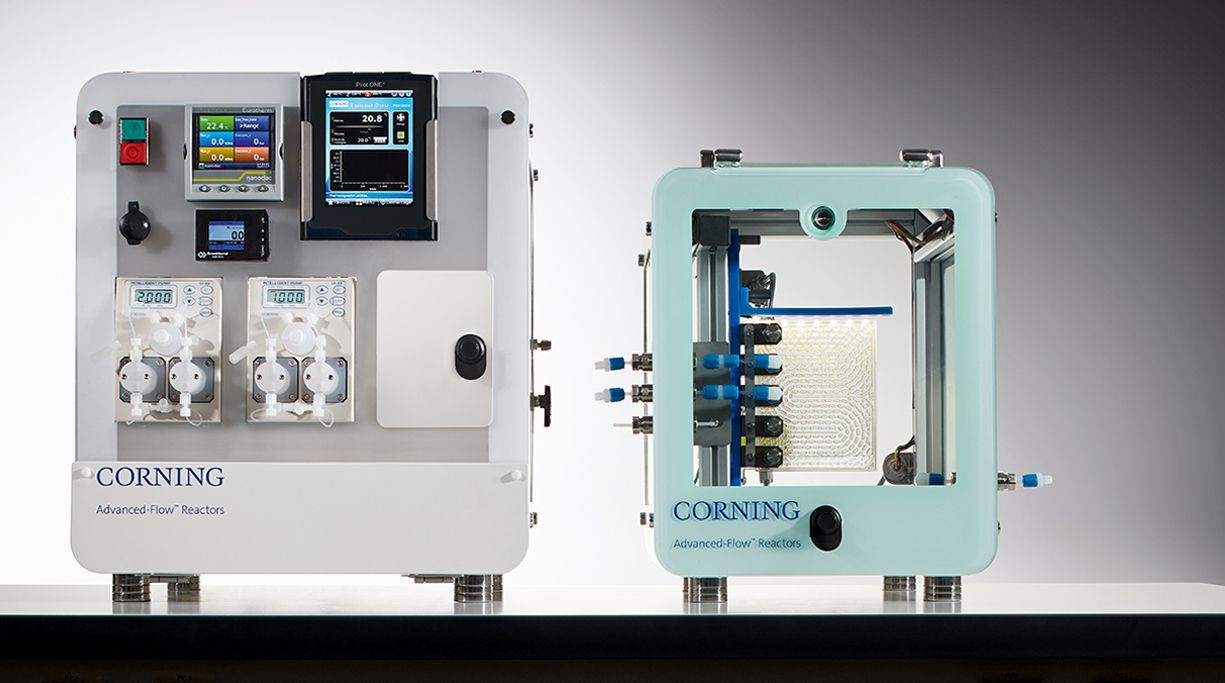

Lab Reactor
Stepping into flow chemistry
Lab Reactor
- Flow Rate : 2 to 10 ml/min
- Temperature : -40℃ to 200℃
- Pressure : Up to 18 barg
- Materials : Glass PFA/PTFE Perfluoroelastomer
- Fludic Module : 2.7ml internal volume
- Options : 3rd liquid dosing line
2nd glass fludic module
Lab photo reactor module
Features
- Plug and play open system including data monitoring
- Ready to start, with thermostat integrated
- Up to 3 liquid lines, 1 gas line and a back pressure regulator for pressure control
- High chemical durability due to a full metal free system
- Outstanding mixing and heat exchange with patented HEART desingn
- Low internal volume
- Seamless scale-up with other advanced-flow TM Reactor products
- Fluidic Module Size = 155 * 125mm
- Internal Volume = 2.7ml

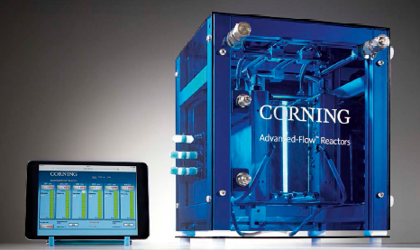

Lab Photo Reactor Option
- Compatible with the Lab Reactor system
• Tunable LED irradiation source, with 6 different wavelengths 365 nm, 385 nm, 405 nm, 485 nm, 610 nm, 4000K
• LED lighting intensity higher than 100 mW/cm2
• Efficient light penetration with both sides of glass fluidic module illuminated
• Extended LED lifetime due to efficient liquid cooling
• Wireless control of wavelength selection and intensity
