MiniPilot
•Glass reactor : 5, 10, 15 liter •Temperature : -60 °C (-90 °C) to 200 °C
miniPilot 10liter glass pilot reactor
- Glass reactor : 5, 10, 15 liter
- Pressure : -1.0 (FV) to +1.0 bar
- Temperature : -60 °C (-90 °C) to +200 °C
- Material : Borosilicate glass 3.3, PTFE, PFA, PEEK
Standard package
- 5, 10, 15 liters jacketed glass reactor, interchangeable
- Baffle with Pt100 temperature sensor
- Continuous adjustable agitator speed, 0-600 rpm
- Dry running mechanical seal
- Compact stainless steel frame, table or floor model, mobile
- ATEX Zone 1 (0) / CE / cGMP
- CIP capable
- FDA conform, highly corrosion resistant
- Complete documentation
Standard options
- Reactor lift for easy reactor opening, cleaning, stirrer exchange
- 3-wall reactor vessel for -90 °C chemistry
- Glass distillation overhead
- Sampling system
- Probes for pH, others
- CiP spray nozzle
- IQ / OQ / PQ

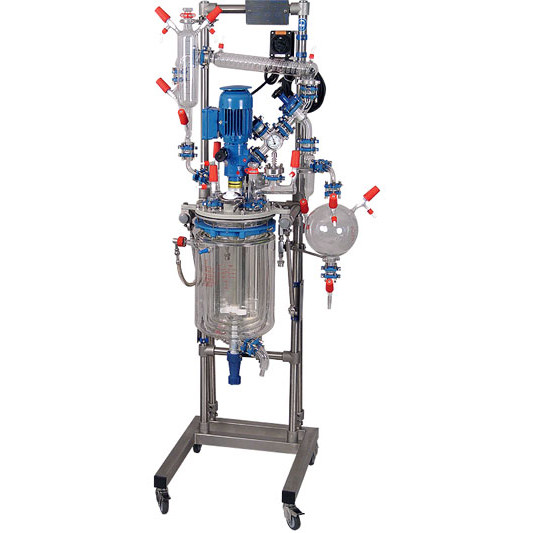

Compact, mobile frame
- Compact stainless steel frame fits in standard laboratory fume hood
- Bench-top model
- Floor model, mobile

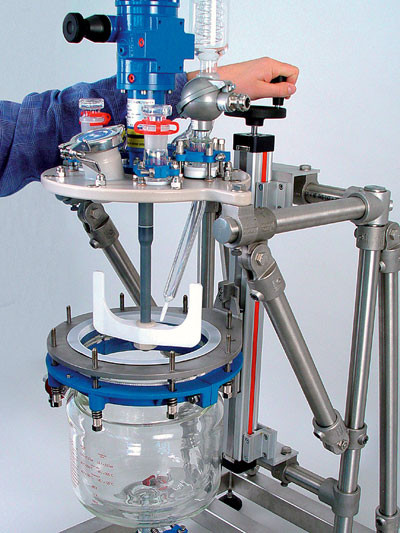

- Vessel lift for easy handling of glass reaction vessels

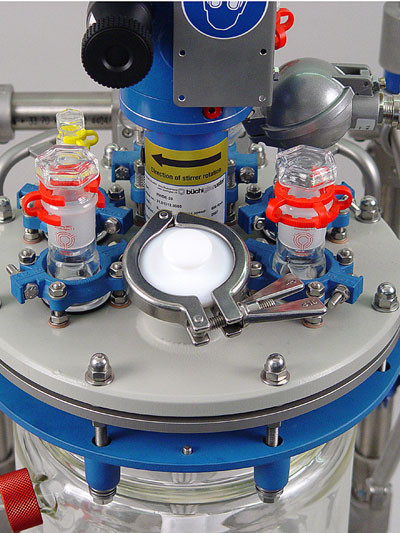

Solid cover plate
- PFA coated steel cover plate
- Fast-action closure for addition of solids
- Standard version with 4 NS tapered joint
- 2 spare connections for common laboratory glassware

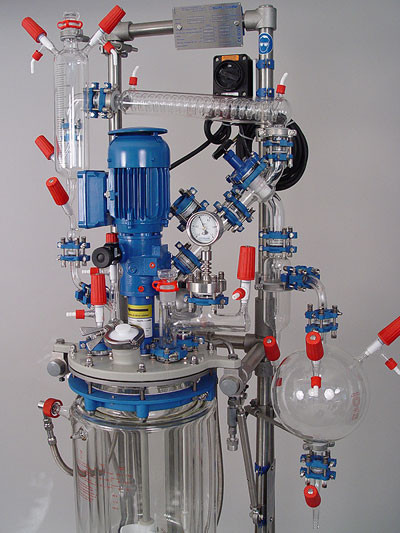

Distillation glass overhead
Optional distillation Overhead consisting of:
- 1 liter feed vessel
- Vapor duct with reflux splitter
- Spiral reflux condenser
- Phase separator
- 4 liter receiver vessel
- Distributor with pressure gauge and vacuum connection
- Nitrogen connection
- Self-draining «buchiflex» glass piping
Stirrer drive, stirrers
- Ex proof drive
- Dry running mechanical seal

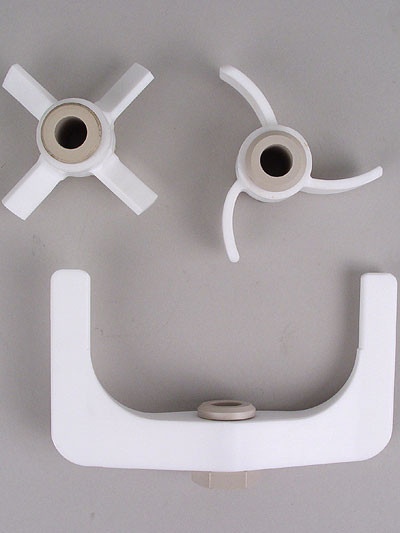

- Easy interchangeable stirrers : Anchor stirrer,
Pitched blade turbine, Retreat curve impeller
Chemical reactions, applications
- Vacuum distillation
- Azeotropic distillation (phase separation)
- Evaporation to any desired consistency
- Multi-component chemical reactions
- Gas introduction into liquid phase
- Chemical synthesis
- Extraction of multi phase mixture
- Crystallization
- Refluxing
- Multiple chemical reactions liquid/liquid, · liquid/solid
- Low temperature chemistry
